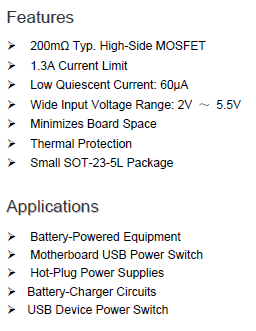

Features

? 200mΩ Typ. High-Side MOSFET

? 1.3A Current Limit

? Low Quiescent Current: 60μA

? Wide Input Voltage Range: 2V ～ 5.5V

? Minimizes Board Space

? Thermal Protection

? Small SOT-23-5L Package

Applications

? Battery-Powered Equipment

? Motherboard USB Power Switch

Description

The HX9001 is an integrated 200mΩ power switch for self-powered and bus-powered Universal Series Bus (USB) applications. Its low quiescent supply current (60μA) and small package (SOT-23-5L) is particularly suitable in battery-powered portable equipment.

Several protection functions include soft start to limit inrush current during plug-in, current limiting at 1.3A to meet USB power requirement, and thermal shutdown to protect damage under over current condition.

? Hot-Plug Power Supplies

? Battery-Charger Circuits

? USB Device Power Switch

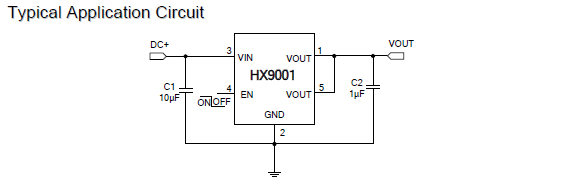

Typical Application Circuit
