型号	通道数	输入电压 V	静态电流 μA	输出电压 V	最大输出电流 mA	频率 mHz	同步	封装	说明书
HX1006	2	2.5～5.5	200*2	0.6～5.5	700*2	1.4	√	DFN3*3-10L

Features

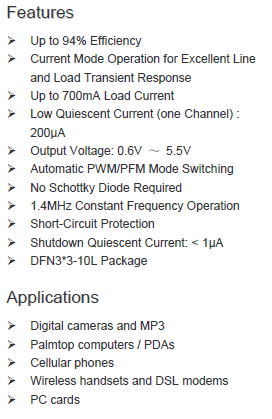

?  Up to 94% Efficiency

?  Current Mode Operation for Excellent Line and Load Transient Response

?  Up to 700mA Load Current

?  Low Quiescent Current (one Channel) : 200μA

?  Output Voltage: 0.6V ～ 5.5V

?  Automatic PWM/PFM Mode Switching

?  No Schottky Diode Required

?  1.4MHz Constant Frequency Operation

?  Short-Circuit Protection

?  Shutdown Quiescent Current: < 1μA

?  DFN3*3-10L Package

Description

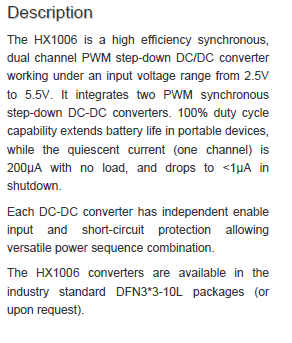

The HX1006 is a high efficiency synchronous, dual channel PWM step-down DC/DC converter working under an input voltage range from 2.5V to 5.5V. It integrates two PWM synchronous step-down DC-DC converters. 100% duty cycle capability extends battery life in portable devices, while the quiescent current (one channel) is 200μA with no load, and drops to <1μA in shutdown.

Each DC-DC converter has independent enable input and short-circuit protection allowing versatile power sequence combination.

The HX1006 converters are available in the industry standard DFN3*3-10L packages (or upon request).

Applications

?  Digital cameras and MP3

?  Palmtop computers / PDAs

?  Cellular phones

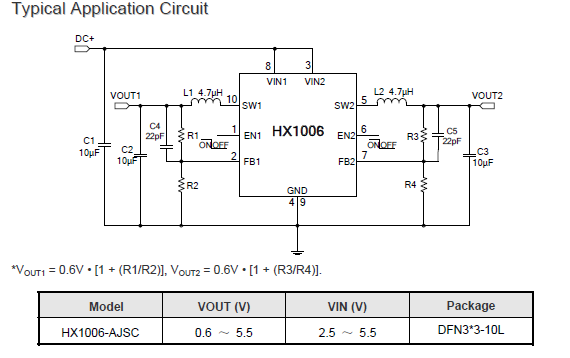

Typical Application Circuit
