HX1164C-AGN
| 型号 | 通道数 | 输入电压 V | 静态电流 μA | 输出电压 V | 最大输出电流 mA | 频率 mHz | 同步 | 封装 | 说明书 |
|---|---|---|---|---|---|---|---|---|---|
| HX1164C-AGN | 1 | 8～35 | 8000 | 5 | 1500 | 0.13 | √ | SOP-8L |  |
Feature
Fixed Output Voltage: 5V
Wide Input Operation Voltage Range: 8V to 35V
Absolute Maximum Input Supply Voltage: 40V
Input Protection Mode Trigger Voltage: 32V
Up to 93% Efficiency
Fixed Switching Frequency: 130kHz
ON/OFF Control
No Loop Compensation Required
Programmable current limit
Thermal Shutdown
Available in SOP-8L Package
Application
Car Charger / Adaptor
Pre-Regulator for Linear Regulators
Distributed Power Systems
Battery Charger

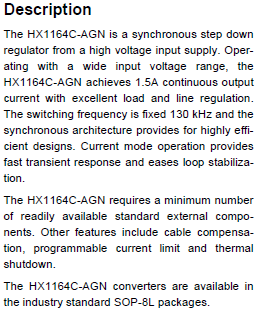

Description
The HX1164C-AGN is a synchronous step down regulator from a high voltage input supply. Operating with a wide input voltage range, the HX1164C-AGN achieves 1.5A continuous output current with excellent load and line regulation. The switching frequency is fixed 130 kHz and the synchronous architecture provides for highly efficient designs. Current mode operation provides fast transient response and eases loop stabilization.
The HX1164C-AGN requires a minimum number of readily available standard external components. Other features include cable compensation, programmable current limit and thermal shutdown.
The HX1164C-AGN converters are available in the industry standard SOP-8L packages.

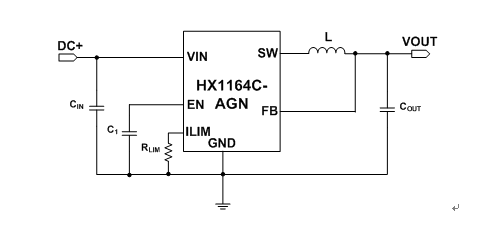

Typical Application Circuit
