型号	通道数	输入电压 V	静态电流 μA	输出电压 V	最大输出电流 mA	频率 mHz	同步	封装	说明书
HX1254A-AGN	1	8～35	3000	1.21～5.5	1500	0.1～0.5	异步	SOP-8L

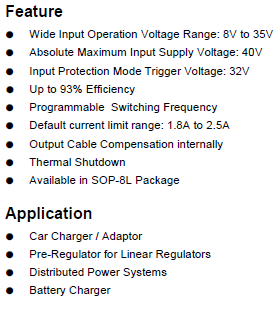

Feature

Wide Input Operation Voltage Range: 8V to 35V

Absolute Maximum Input Supply Voltage: 40V

Input Protection Mode Trigger Voltage: 32V

Up to 93% Efficiency

Programmable Switching Frequency

Default current limit range: 1.8A to 2.5A

Output Cable Compensation internally

Thermal Shutdown

Available in SOP-8L Package

Description

The HX1254A-AGN is a asynchronous step down regulator from a high voltage input supply. HX1254A-AGN achieves 1.5A continuous output current with excellent load and line regulation in input operation voltage. The switching frequency is programmable and the asynchronous architecture provides for highly efficient designs. Current mode operation provides fast transient response and eases loop stabilization.

The HX1254A-AGN requires a minimum number of readily available standard external components. Other features include cable compensation and thermal shutdown.

The HX1254A-AGN converters are available in the industry standard SOP-8L packages.

Application

Car Charger / Adaptor

Pre-Regulator for Linear Regulators

Distributed Power Systems

Battery Charger

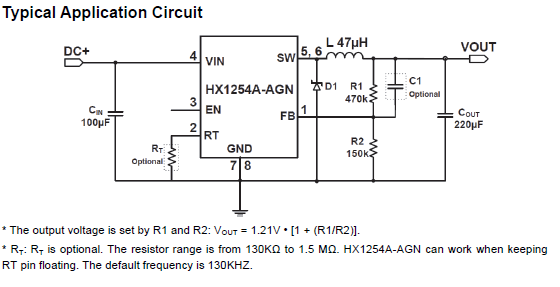

Typical Application Circuit
