型号	通道数	输入电压 V	静态电流 μA	输出电压 V	最大输出电流 mA	频率 mHz	同步	封装	说明书
HX1344D	1	8～35	15000	1.21～28	2400	0.13	√	SOP-8L

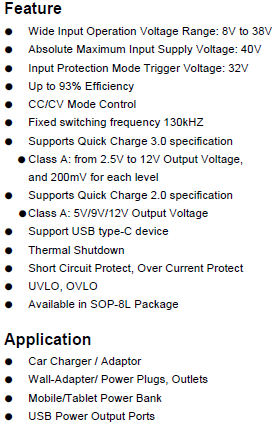

Feature

Wide Input Operation Voltage Range: 8V to 38V

Absolute Maximum Input Supply Voltage: 40V

Input Protection Mode Trigger Voltage: 32V

Up to 93% Efficiency

CC/CV Mode Control

Fixed switching frequency 130kHZ

Supports Quick Charge 3.0 specification

Class A: from 2.5V to 12V Output Voltage, and 200mV for each level

Supports Quick Charge 2.0 specification

Class A: 5V/9V/12V Output Voltage

Support USB type-C device

Thermal Shutdown

Short Circuit Protect, Over Current Protect

UVLO, OVLO

Available in SOP-8L Package

Application

Car Charger / Adaptor

Wall-Adapter/ Power Plugs, Outlets

Mobile/Tablet Power Bank

USB Power Output Ports

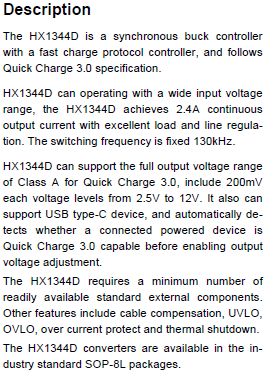

Description

The HX1344D is a synchronous buck controller with a fast charge protocol controller, and follows Quick Charge 3.0 specification.

HX1344D can operating with a wide input voltage range, the HX1344D achieves 2.4A continuous output current with excellent load and line regulation. The switching frequency is fixed 130kHz.

HX1344D can support the full output voltage range of Class A for Quick Charge 3.0, include 200mV each voltage levels from 2.5V to 12V. It also can support USB type-C device, and automatically detects whether a connected powered device is Quick Charge 3.0 capable before enabling output voltage adjustment.

The HX1344D requires a minimum number of readily available standard external components. Other features include cable compensation, UVLO, OVLO, over current protect and thermal shutdown.

The HX1344D converters are available in the industry standard SOP-8L packages.

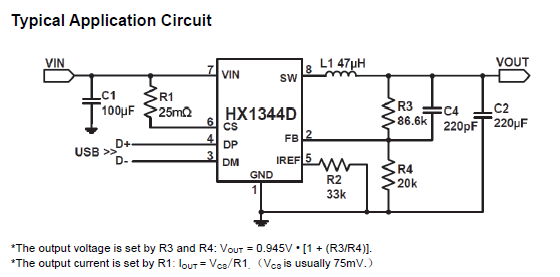

Typical Application Circuit
