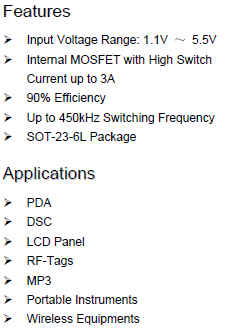

Features

?  Input Voltage Range: 1.1V ～ 5.5V

?  Internal MOSFET with High Switch Current up to 3A

?  90% Efficiency

?  Up to 450kHz Switching Frequency

?  SOT-23-6L Package

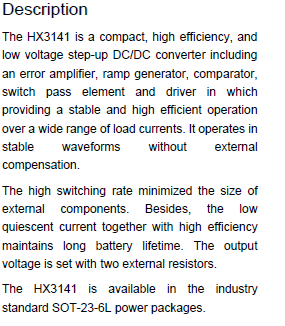

Description

The HX3141 is a compact, high efficiency, and low voltage step-up DC/DC converter including an error amplifier, ramp generator, comparator, switch pass element and driver in which providing a stable and high efficient operation over a wide range of load currents. It operates in stable waveforms without external compensation.

The high switching rate minimized the size of external components. Besides, the low quiescent current together with high efficiency maintains long battery lifetime. The output voltage is set with two external resistors.

The HX3141 is available in the industry standard SOT-23-6L power packages.

Applications

?  PDA

?  DSC

?  LCD Panel

?  RF-Tags

?  MP3

?  Portable Instruments

?  Wireless Equipments

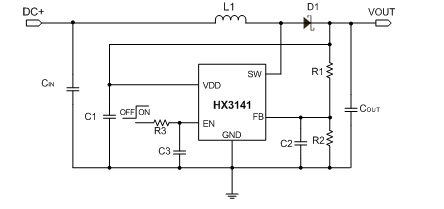

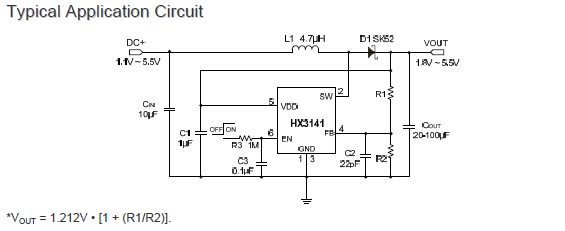

Typical Application Circuit
