型号	通道数	输入电压 V	静态电流 μA	输出电压 V	最大输出电流 mA	频率 mHz	同步	封装	说明书
HX3008	3	2.5～5.5	6	10,20,-20	40,2,2	0.4		DFN12L

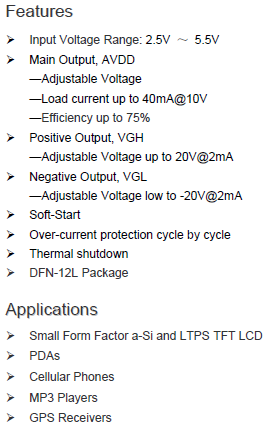

Features

? Input Voltage Range: 2.5V ～ 5.5V

? Main Output, AVDD

—Adjustable Voltage

—Load current up to 40mA@10V

—Efficiency up to 75%

? Positive Output, VGH

—Adjustable Voltage up to 20V@2mA

? Negative Output, VGL

—Adjustable Voltage low to -20V@2mA

? Soft-Start

? Over-current protection cycle by cycle

? Thermal shutdown

? DFN-12L Package

Applications

? Small Form Factor a-Si and LTPS TFT LCD

? PDAs

? Cellular Phones

? MP3 Players

? GPS Receivers

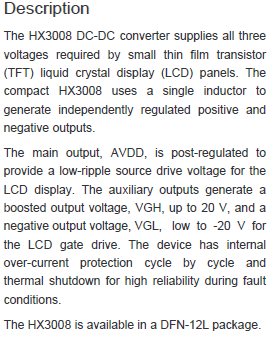

Description

The HX3008 DC-DC converter supplies all three voltages required by small thin film transistor (TFT) liquid crystal display (LCD) panels. The compact HX3008 uses a single inductor to generate independently regulated positive and negative outputs.

The main output, AVDD, is post-regulated to provide a low-ripple source drive voltage for the LCD display. The auxiliary outputs generate a boosted output voltage, VGH, up to 20 V, and a negative output voltage, VGL, low to -20 V for the LCD gate drive. The device has internal over-current protection cycle by cycle and thermal shutdown for high reliability during fault conditions.

The HX3008 is available in a DFN-12L package.

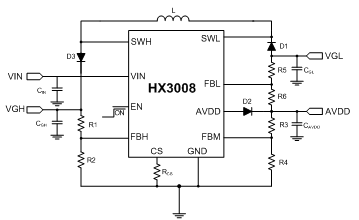

Typical Application Circuit
