HX1002
| 型号 | 通道数 | 输入电压 V | 静态电流 μA | 输出电压 V | 最大输出电流 mA | 频率 mHz | 同步 | 封装 | 说明书 |
|---|---|---|---|---|---|---|---|---|---|
| HX1002 | 1 | 2.2～5.5 | 200 | 1.2,1.5,1.8, 3.3/0.6～5.5 | 700 | 1/1.4 | √ | SOT-23-5L |  |

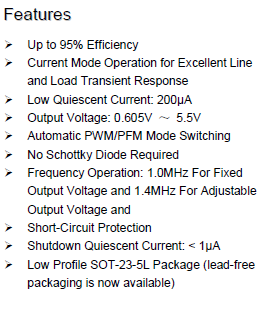

Features
? Up to 95% Efficiency
? Current Mode Operation for Excellent Line and Load Transient Response
? Low Quiescent Current: 200μA
? Output Voltage: 0.6V ～ 5.5V
? Automatic PWM/PFM Mode Switching
? No Schottky Diode Required
? Frequency Operation: 1.0MHz For Fixed Output Voltage and 1.4MHz For Adjustable Output Voltage and
? Short-Circuit Protection
? Shutdown Quiescent Current: < 1μA
? Low Profile SOT-23-5L Package (lead-free packaging is now available)
Applications
? Digital cameras and MP3
? Palmtop computers / PDAs
? Cellular phones
? PC cards
? Portable media players

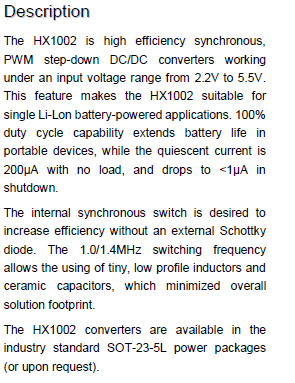

Description
The HX1002 is high efficiency synchronous, PWM step-down DC/DC converters working under an input voltage range from 2.2V to 5.5V. This feature makes the HX1002 suitable for single Li-Lon battery-powered applications. 100% duty cycle capability extends battery life in portable devices, while the quiescent current is 200μA with no load, and drops to <1μA in shutdown.
The internal synchronous switch is desired to increase efficiency without an external Schottky diode. The 1.0/1.4MHz switching frequency allows the using of tiny, low profile inductors and ceramic capacitors, which minimized overall solution footprint.
The HX1002 converters are available in the industry standard SOT-23-5L power packages (or upon request).
Order Information
HX1002 – ① ②:
SYMBOL | DESCRIPTION |
① | Denotes Output Voltage: A : Adjustable Output K : 1.2V B : 1.5V C : 1.8V G : 3.3 V |
② | Denotes Package Type: E: SOT-23-5L |

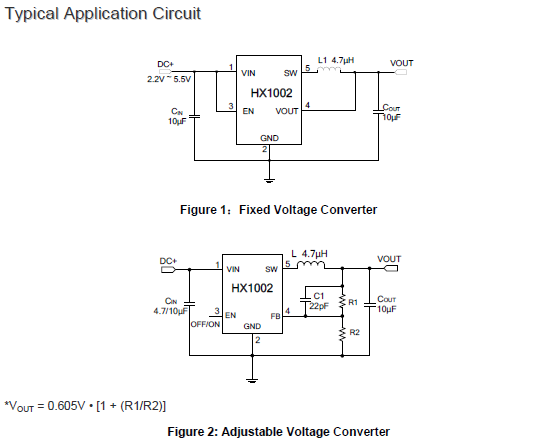

Typical Application Circuit
Figure 1：Fixed Voltage Converter
Figure 2: Adjustable Voltage Converter
