型号	通道数	输入电压 V	静态电流 μA	输出电压 V	最大输出电流 mA	频率 mHz	同步	封装	说明书
HX1104G-AGN	1	8～30	15000	1.21～5.5	1200	0.1～0.5	√	SOP-8L

Features

Wide Input Operation Voltage Range: 8V to 30V

Absolute Maximum Input Supply Voltage: 35V

Input Protection Mode Trigger Voltage: 32V

Up to 95% Efficiency

Programmable current limit

Output Cable Compensation up to 0.7V

Thermal Shutdown

Available in SOP-8L Package

Description

The HX1104G-AGN is a synchronous step down regulator from a high voltage input supply. HX1104G-AGN achieves 1.2A continuous output current with excellent load and line regulation. The switching frequency is programmable and the synchronous architecture provides for highly efficient designs. Current mode operation provides fast transient response and eases loop stabilization.

The HX1104G-AGN requires a minimum number of readily available standard external components. Other features include cable compensation, programmable current limit and thermal shutdown.

The HX1104G-AGN converters are available in the industry standard SOP-8L packages.

Applications

?  Car Charger / Adaptor

?  Pre-Regulator for Linear Regulators

?  Distributed Power Systems

?  Battery Charger

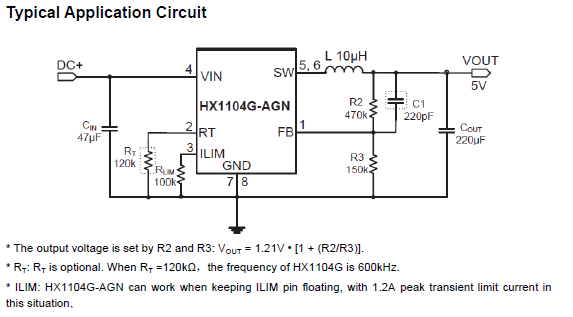

Typical Application Circuit
