HX1314G-AGN
| 型号 | 通道数 | 输入电压 V | 静态电流 μA | 输出电压 V | 最大输出电流 mA | 频率 mHz | 同步 | 封装 | 说明书 |
|---|---|---|---|---|---|---|---|---|---|
| HX1314G-AGN | 1 | 8～40 | 6500 | 1.21～5.5 | 3200 | 0.13～0.5 | √ | SOP-8L |  |
Features
Wide Input Operation Voltage Range: 8V to 40V
Absolute Maximum Input Supply Voltage: 42V
Input Protection Mode Trigger Voltage: 32V
Up to 93% Efficiency
Programmable Switching Frequency up to up
to 500kHz
No Loop Compensation Required
Programmable current limit
Thermal Shutdown
Available in SOP-8L Package

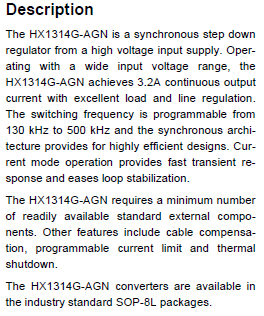

Description
The HX1314G-AGN is a synchronous step down regulator from a high voltage input supply. Operating with a wide input voltage range, the HX1314G-AGN achieves 3.2A continuous output current with excellent load and line regulation. The switching frequency is programmable from 130 kHz to 500 kHz and the synchronous architecture provides for highly efficient designs. Current mode operation provides fast transient response and eases loop stabilization.
The HX1314G-AGN requires a minimum number of readily available standard external components. Other features include programmable current limit and thermal shutdown.
The HX1314G-AGN converters are available in the industry standard SOP-8L packages.
Applications
? Car Charger / Adaptor
? Pre-Regulator for Linear Regulators
? Distributed Power Systems
? Battery Charger

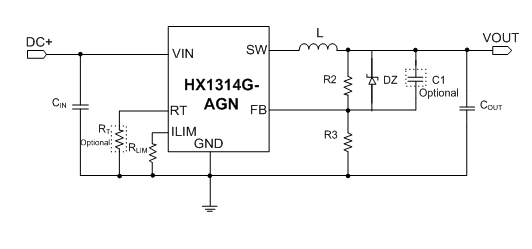

Typical Application Circuit
