HX1336
| 型号 | 通道数 | 输入电压 V | 静态电流 μA | 输出电压 V | 最大输出电流 mA | 频率 mHz | 同步 | 封装 | 说明书 |
|---|---|---|---|---|---|---|---|---|---|
| HX1336 | 1 | 8～30 | 1300 | 1.21～28 | 2000 | 0.1～0.5 | √ | SOP-8L |  |

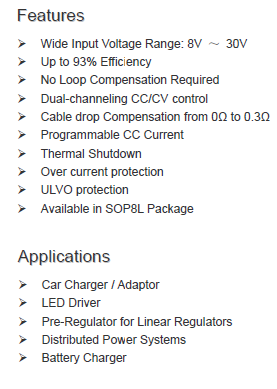

Features
? Wide Input Voltage Range: 8V ～ 30V
? Up to 93% Efficiency
? No Loop Compensation Required
? Dual-channeling CC/CV control
? Cable drop Compensation from 0? to 0.3?
? Programmable CC Current
? Thermal Shutdown
? Over current protection
? ULVO protection
? Available in SOP8L Package

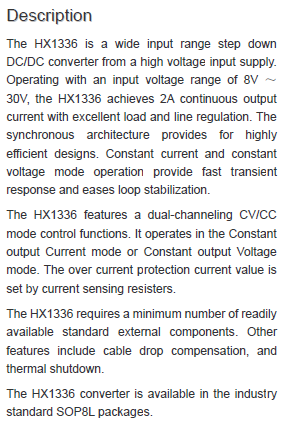

Description
The HX1336 is a wide input range step down DC/DC converter from a high voltage input supply. Operating with an input voltage range of 8V ～ 30V, the HX1336 achieves 2A continuous output current with excellent load and line regulation. The synchronous architecture provides for highly efficient designs. Constant current and constant voltage mode operation provide fast transient response and eases loop stabilization.
The HX1336 features a dual-channeling CV/CC mode control functions. It operates in the Constant output Current mode or Constant output Voltage mode. The over current protection current value is set by current sensing resisters.
The HX1336 requires a minimum number of readily available standard external components. Other features include cable drop compensation, and thermal shutdown.
The HX1336 converter is available in the industry standard SOP8L packages.
Applications
? Car Charger / Adaptor
? LED Driver
? Pre-Regulator for Linear Regulators
? Distributed Power Systems
? Battery Charger

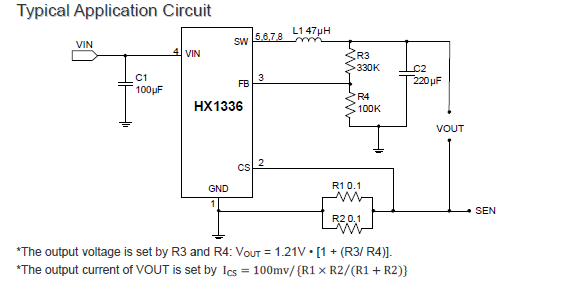

Typical Application Circuit
