Features

?  Output Current: 1A

?  Stable with Low ESR Output Ceramic

Capacitors

?  Thermal Shutdown

?  Up to 92% Efficiency

?  Cycle-by-cycle over current protection

?  Wide 5V to 16V operating input range

?  Output Adjustable from 1.2V to 16V

?  Available in 6 pin SOT package

?  High Frequency up to 400kHz

Description

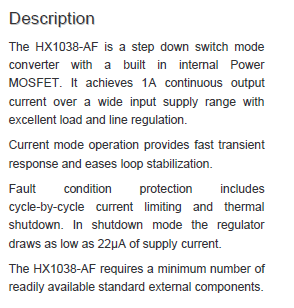

The HX1038-AF is a step down switch mode converter with a built in internal Power MOSFET. It achieves 1A continuous output current over a wide input supply range with excellent load and line regulation.

Current mode operation provides fast transient response and eases loop stabilization.

Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. In shutdown mode the regulator draws as low as 22μA of supply current.

The HX1038-AF requires a minimum number of readily available standard external components.

Application
Pre-Regulator for Linear Regulators

?  Distributed Power Systems

?  Battery Charger

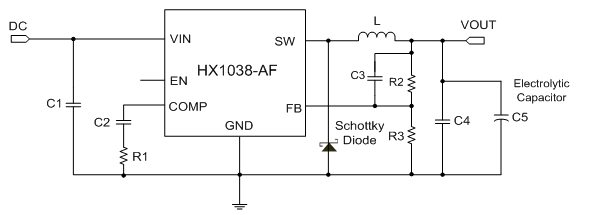

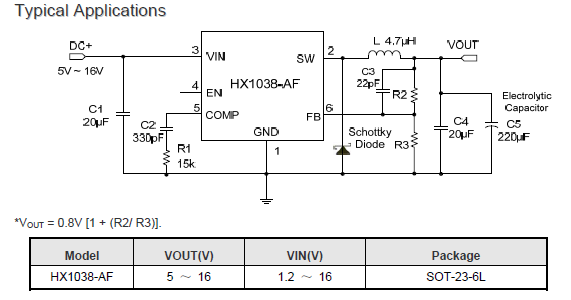

Typical Applications
