HX1038-AG
| 型号 | 通道数 | 输入电压 V | 静态电流 μA | 输出电压 V | 最大输出电流 mA | 频率 mHz | 同步 | 封装 | 说明书 |
|---|---|---|---|---|---|---|---|---|---|
| HX1038-AG | 1 | 5.0～16 | 700 | 1.2～16 | 2000 | 0.4 | √ | SOP-8L |  |
Features
? Maximum Output Current: 2A
? Stable with Low ESR Output Ceramic
Capacitors
? Thermal Shutdown
? Up to 92% Efficiency
? Cycle-by-Cycle Over Current Protection
? Wide 5V to 16V Operating Input Range
? Programmable Under Voltage Lockout
? Output Adjustable from 1.2V to 16V
? Available in 8 pin SO package
? Frequency : up to 400kHz
Description
The HX1038-AG is a step down switch mode converter. It achieves 2A continuous output current over a wide input supply range with excellent load and line regulation.
Current mode operation provides fast transient response and eases loop stabilization.
Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown.
The HX1038-AG requires a minimum number of readily available standard external components.
Applications
Pre-Regulator for Linear Regulators
? Distributed Power Systems
? Battery Charger

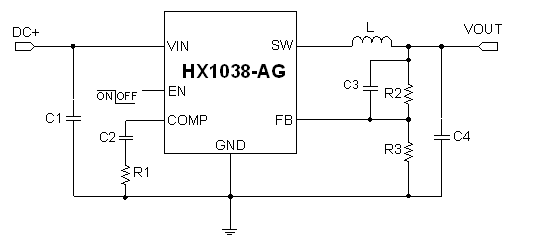

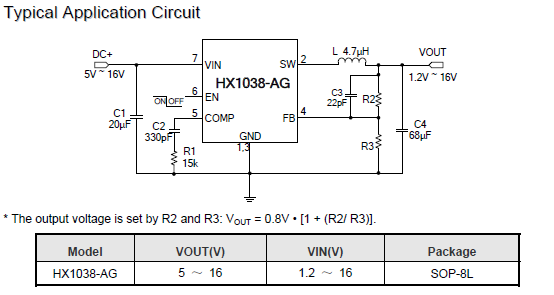

Typical Application Circuit
