Features

?  Wide Input Voltage Range: 8V ～ 30V

?  Up to 93% Efficiency

?  No Loop Compensation Required

?  Dual-channeling CC/CV control

?  Cable drop Compensation from 0? to 0.3?

?  Programmable CC Current

?  Thermal Shutdown

?  Over current protection

?  UVLO protection

?  Available in SOP8-PP Package

Applications

?  Car Charger / Adaptor

?  LED Driver

?  Pre-Regulator for Linear Regulators

?  Distributed Power Systems

?  Battery Charger

Description

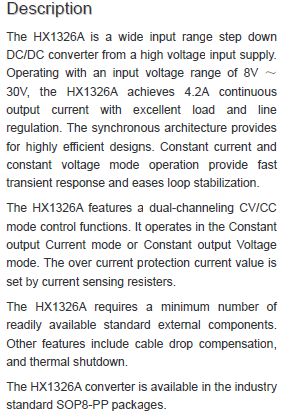

The HX1326A is a wide input range step down DC/DC converter from a high voltage input supply. Operating with an input voltage range of 8V ～ 30V, the HX1326A achieves 4.2A continuous output current with excellent load and line regulation. The synchronous architecture provides for highly efficient designs. Constant current and constant voltage mode operation provide fast transient response and eases loop stabilization.

The HX1326A features a dual-channeling CV/CC mode control functions. It operates in the Constant output Current mode or Constant output Voltage mode. The over current protection current value is set by current sensing resisters.

The HX1326A requires a minimum number of readily available standard external components. Other features include cable drop compensation, and thermal shutdown.

The HX1326A converter is available in the industry standard SOP8-PP packages.

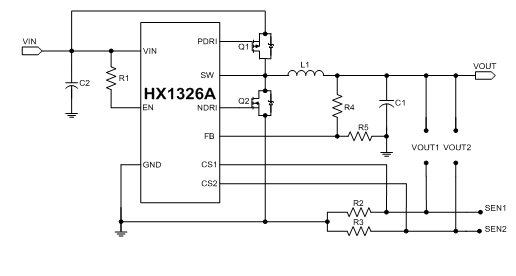

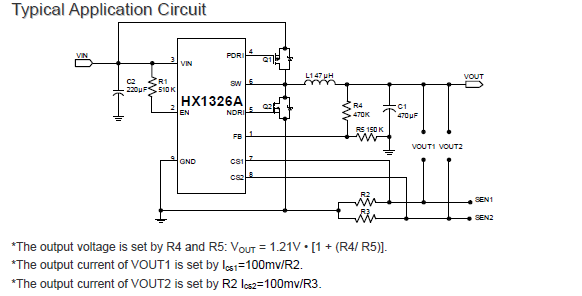

Typical Application Circuit
