HX1316A
| 型号 | 通道数 | 输入电压 V | 静态电流 μA | 输出电压 V | 最大输出电流 mA | 频率 mHz | 同步 | 封装 | 说明书 |
|---|---|---|---|---|---|---|---|---|---|
| HX1316A | 1 | 8～30 | 14000 | 1.21～28 | 4500 | 0.13～0.5 | √ | SOP-8L |  |
Features
? Wide Input Voltage Range: 8V ～ 30V
? Up to 93% Efficiency
? Programmable Switching Frequency up to 500KHz
? No Loop Compensation Required
? CC/CV control
? Programmable CC Current
? Thermal Shutdown
? Available in SOP8L Package

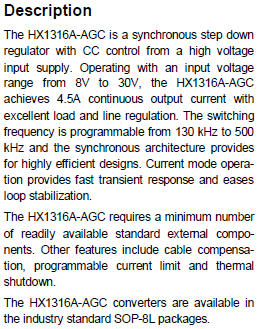

Description
The HX1316A is a synchronous step down regulator with CC control from a high voltage input supply. Operating with an input voltage range of 8V ～ 30V, the HX1316A achieves 4.5A continuous output current with excellent load and line regulation. The switching frequency is programmable from 130KHz to 500KHz and the synchronous architecture provides for highly efficient designs. Current mode operation provides fast transient response and eases loop stabilization.
The HX1316A requires a minimum number of readily available standard external components. Other features include cable compensation, programmable current limit and thermal shutdown.
The HX1316A converters are available in the industry standard SOP8L packages.
Applications
Car Charger / Adaptor
? LED Driver
? Pre-Regulator for Linear Regulators
? Distributed Power Systems
? Battery Charger

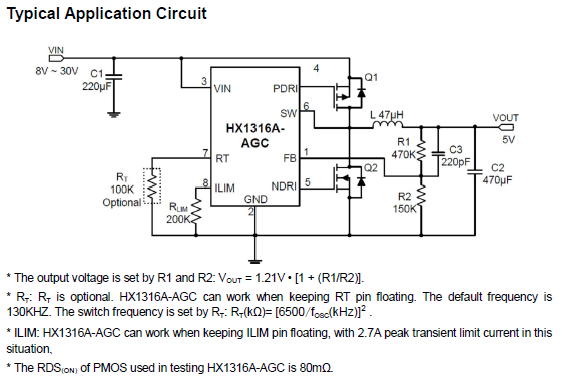

Typical Application Circuit
